Falcon 300 CNC Lathe For Sale
Falcon300CNCLathe

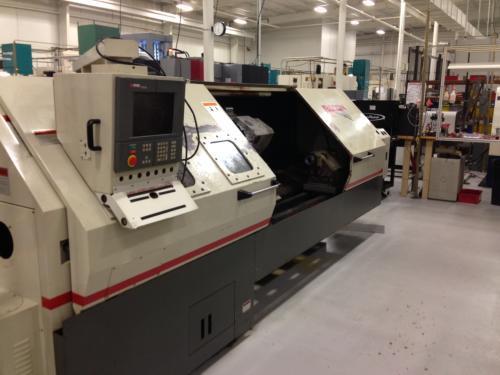

Falcon 300 CNC Lathe
Specifications:
Chuck Size | 12" Hydraulic Chuck |
Maximum Swing | 25.59" |
Maximum Cutting Diameter | 18.8" |
Maximum Turning Length | 40" |
X-Axis Travel | 10.4" |
Z-Axis Travel | 40.15" |
Spindle Nose / Spindle Bore | A2-8" / 3.7" |
Maximum Bar Capacity | 3.25" |
Spindle Speed | 3,000 RPM |
Spindle Motor 30 min / Contin. | 40 HP / 30 HP |
Number of Turret Positions | 12 Position Turret |
Rapid Traverse Rates | 600 IPM |
Cutting Feedrate | 1 to 200 IPM |
Machine Dimensions LxWxH | 163"x83"x78" |
Machine Weight | 14,600 lbs approx. |
Equiped with
- 12" Hydraulic Chuck
- Chip Conveyor
- Tool Presetter
- Filtermist System
- Tailstock with Hydraulic Quill Adjustment
- Upgraded Flat Screen
- Hand Held Pendant Control
- Fanuc 0 Program Translation
- RS 232 Port for DNC Interface
- 3.5" Floppy Disk Drive
- Ethernet Capability
- 14" Color Monitor
- PC Based Control w/ Touch Screen
- Probe Interface
- Probe Cycles for Tool Presetter
- Transformer
- All Available Tooling & Manuals
This machine is used and is being sold as is with no warranty. Some machines may qualify for a 3rd party warranty, please ask. As this is a used machine, we do not offer any refunds or returns.
Please call or email us for more information.
Phone: 616-200-4308 or Email: affordablemachinery@gmail.com
PLEASE NOTE: The shipping & loading cost is at the buyer’s expense (for some reason, we can't specify that with this eCommerce system). The machine is being sold "as is".
