75 Ton Capacity Aida Single-Point Gap Frame Press For Sale – Used
- Model: PC-7(2)
- Capacity: 82.5 Tons (75 Metric Tons)
- Bolster Area: 37.4″ x 19.6″
- Slide Area: 21.2″ x 15.7″
- Stroke: 6.29″
- Ram Adjustment: 2.75″
- Shut Height: 12.5″
- Speed: 60 SPM
Category Archives: Aida Presses
110 Ton Capacity Aida Single-Point Gap Frame Press For Sale
110 Ton Capacity Aida Single-Point Gap Frame Press For Sale
- Model: PC-10(2)
- Capacity: 110 Tons (100 Metric Tons)
- Bolster Area: 41.7″ x 22″
- Stroke: 6.6″
- Ram Adjustment: 3″
- Shut Height: 13.7″ Over Bolster
- Speed: 50 SPM
- Equipped With:
- T-Slotted Bolster
- Ram
60 Ton Capacity Aida Gap Frame Press For Sale – Used
60 Ton Capacity Aida Gap Frame Press For Sale – Used
- Model: C1-6(2)
- Capacity: 66 Tons (60 Metric Tons)
- Bolster Area: 48.81″ x 20.47″
- Slide Area: 18.90″ x 15.75″
- Stroke: 5.51″
- Ram Adjustment: 2.76″
- Shut Height: 11.81″
- Speed: 70 SPM
165 Ton Capacity Aida Single-Point Gap Frame Press For Sale
165 Ton Capacity Aida Single-Point Gap Frame Press For Sale – Used
- Model: C1-15(2)
- Capacity: 165 Tons
- Bed Area: 46″ x 30″
- Stroke: 7.8″
- Ram Adjustment: 3.3″
- Shut Height: 15.7″ Over Bolster
- Speed: 45 SPM
- Equipped With:
- T-Slotted Bolster
- Ram
220 Ton Capacity Aida Single-Point Gap Press For Sale
220 Ton Capacity Aida Single-Point Gap Press For Sale
- Model: NC1-200(2)
- Year: New in 1990
- Capacity: 220 Ton
- Bed Area: 55″ x 33″
- Stroke: 9.5″
- Shut Height: 26.5″ to Bed
- Slide Adj.: 4″
- Slide Surface Area: 35″ x 27″
- Speed: 38 SPM
I’m a Manufacture – Click Here For Updates on Machines & Equipment
165 Ton Aida Single-Point Gap Frame Presses For Sale (4 Available)
165 Ton Aida Single-Point Gap Frame Presses (4 Available) For Sale
- Model: NC1-150
- Year: 1990
- Capacity: 165 Tons
- Bed Area: 46″ x 30″
- Stroke: 7.9″
- Shut Height: 18.5″ to Bolster
- Slide Adjustment: 4″
- Slide Surface Area: 28″ x 23″
- Speed: 45 SPM
- Equipped With: Cushion
Click Here For Updates on Machines & Equipment As They Become Available
[video_traffic_x_video id=”17″]
800 Ton Aida Press For Sale
Used 800 Ton Aida Press For Sale
- Serial number: 12100-0500
- Model: FT2-80
- Stroke: 15.7”
- SPM: 12-25
- Bolster: 40” x 142”
- Shut Height: 35.4”
- Adjustment: 3.4”
- Windows: 48.5” wide
- Micro-Inching
- Moving bolster: Front to back
- Cushions
- Destacker
- Two dimensional transfer system pitch: 17.750”
- Number of stages: 8 + 1
- Clamp stoke: 6” per side
Click Here For Updates on Machines & Equipment As They Become Available

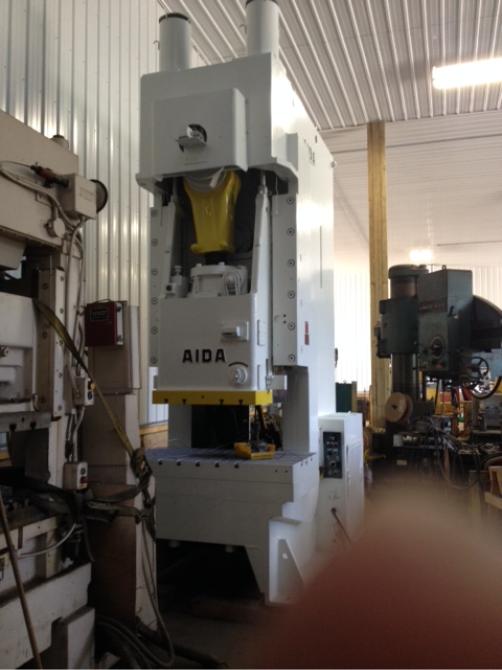

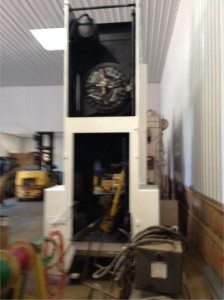

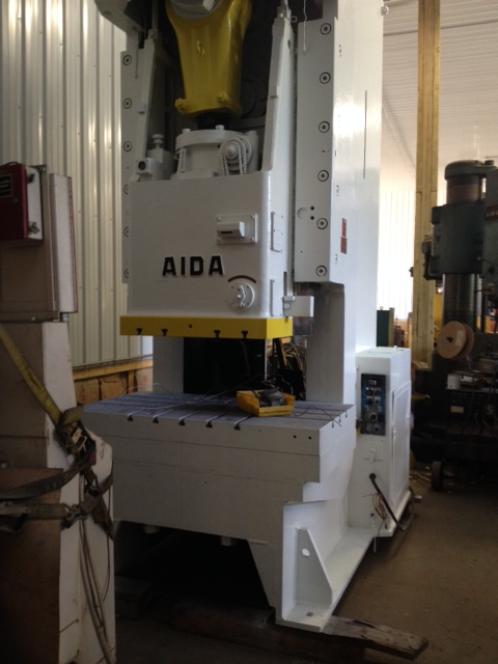

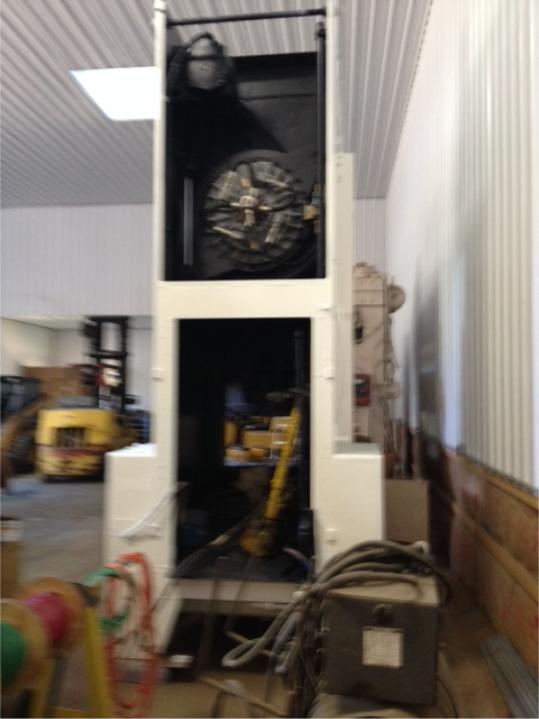

200 Ton Aida Gap Frame Press
200 Ton Aida Gap Frame Press For Sale
- Model FF-XGO-200SU
- Capacity 200 Tons
- Stroke 9.8″
- Slide Adjustment 4.1″
- Shut Height 17.7″
- Bed Area 57″ x 31.4″
- Slide Area 33.4″ x 24.8″
- Speed 33 SPM
- Overall Height 15’6″
- Total Weight 55,000 lbs
